Does My Ford 1.0 EcoBoost Have a Wet Belt? Belt vs Chain Explained
Quick answer
- The earlier Ford 1.0 EcoBoost drives its camshafts with a wet timing belt that runs in engine oil.
- A later revision moved the cam drive to a timing chain, but you can’t tell which one you have from the plate or year alone.
- Quick guide: turbo at the front of the engine bay means the belt engine; turbo at the back, by the bulkhead, usually means the chain engine.
- Chain engines still have a wet oil pump belt running in oil. It still wears and still needs checking.
- It’s always best to send us your reg and we’ll confirm which engine your car has before you book.
If you drive a Ford Fiesta, Focus, EcoSport, B-Max, C-Max or another model with the 1.0 EcoBoost petrol engine, you have probably heard about the wet belt. The usual question we get is simple: does my car have one, or is it the newer chain engine? And if it is a chain, can I forget about it?
The honest answer is that the 1.0 EcoBoost wet belt question is not as simple as belt or chain. This guide explains how to tell the two engines apart, why a chain engine still has a belt in the oil, what warning signs to look out for, and what our wet belt replacement involves.
Belt or chain: how the two 1.0 EcoBoost engines differ
The original 1.0 EcoBoost uses a rubber timing belt to turn the camshafts. Unlike a traditional cam belt, which runs dry behind a plastic cover, this one runs inside the engine and is bathed in engine oil. That is why it is called a wet belt, or a belt-in-oil. The idea was a quieter, low-friction engine with a long-lasting belt.
In practice, the rubber breaks down over time in hot oil. Short trips, stop-start driving, overdue oil changes and the wrong oil all speed that up. As the belt ages, its surface can soften, crack and shed small pieces of rubber into the oil.
A later revision of the 1.0 EcoBoost replaced the cam belt with a timing chain. Ford did not switch every model on a single date, and cars were registered for some time after they were built, so the registration year or number plate is not a reliable guide on its own. Two cars on the same plate can have different engines.
How to tell: the turbo-position check
You don’t need tools for this. With the engine off and cool, open the bonnet and look at where the turbocharger sits. It is usually hidden under a large metal heat shield.
- Turbo at the front of the engine, towards the radiator and front bumper: this is the earlier engine with the wet cam belt.
- Turbo at the back of the engine, near the bulkhead and windscreen: this is usually the later engine with a timing chain.
Treat this as a quick guide, not a final answer. Engine covers, heat shields and pipework can make it hard to see. It’s always best to send us your reg and we’ll confirm which engine your car has before you book. That way you know exactly what job you need and what it costs.
Why a chain engine still needs its oil pump wet belt checked
This is the part that catches people out. A lot of owners find out their car has the later chain engine and assume the wet belt problem doesn’t apply to them. That is not quite right.

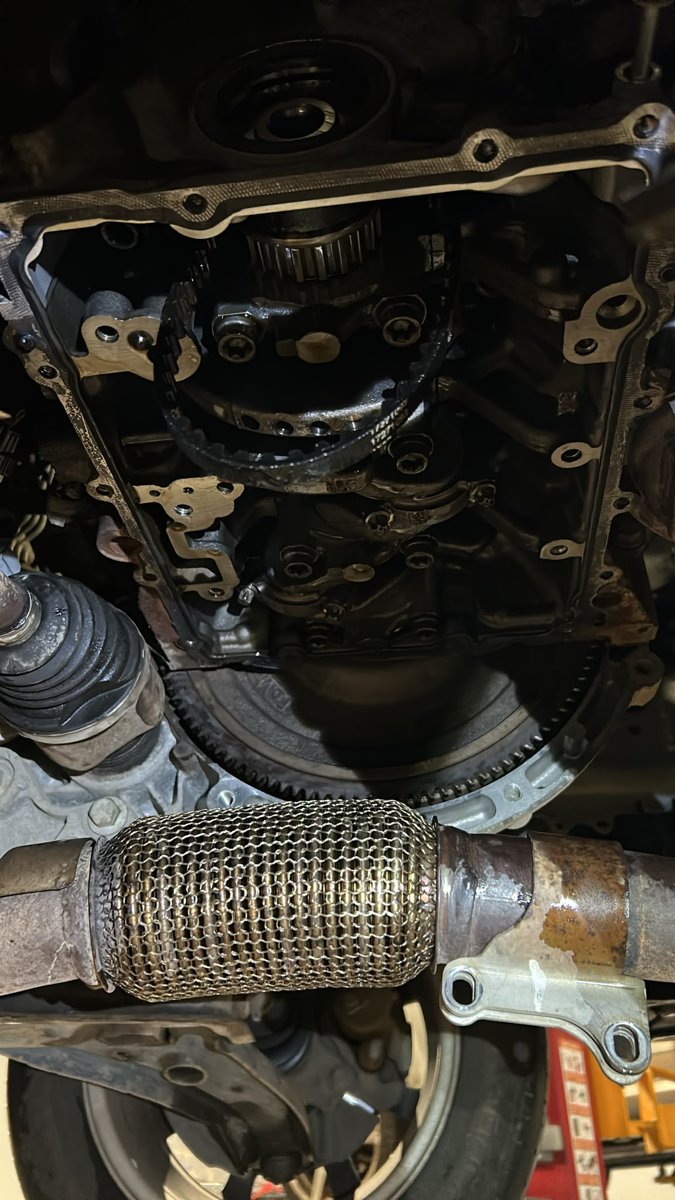

On the later 1.0 EcoBoost, the timing chain drives the camshafts, but the oil pump is still driven by its own smaller belt, and that belt also runs in engine oil. So a chain engine still has a wet belt inside it. On some automatic versions the oil pump is driven by gears instead, which is another reason we check each car individually.
The oil pump belt is made of similar material and lives in the same hot oil, so it ages in the same way. As it degrades it can:
- shed rubber and fibre debris into the oil and the sump
- collect on the oil pump strainer, the mesh that filters oil before it reaches the pump
- restrict the flow of oil to the pump, which can lead to low oil pressure
- in the worst case, starve the engine of oil and cause serious damage
So “it’s a chain, I’m fine” is not the whole story. If your car has the chain engine, the oil pump belt still needs to be checked, and replaced when it is worn.

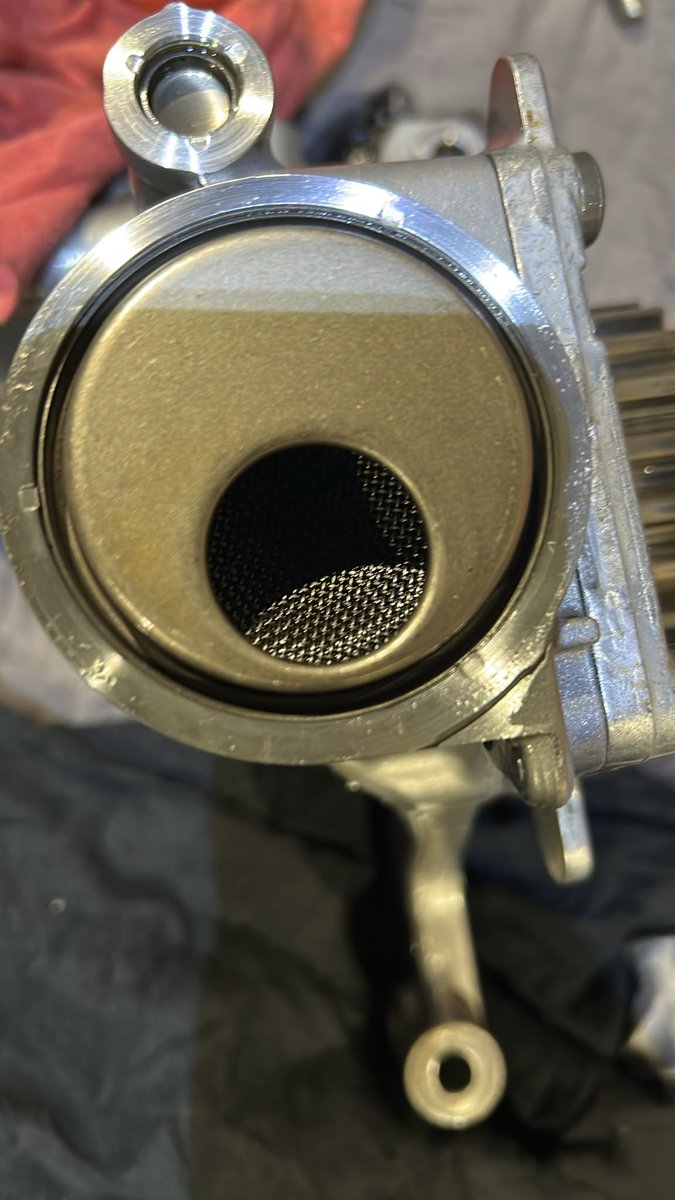

Replacing the oil pump belt on a chain engine always means removing the timing cover and the sump. With the sump off, we check and clean the oil strainer, so any belt debris that has collected there is cleared before the new belt goes on.
Warning signs of a worn wet belt
Whether your car has the belt or the chain engine, these are the signs that point to a wet belt problem. Some show up on the dashboard and some only show up when the engine is opened up:
- Oil pressure warning light. If this comes on, stop as soon as it is safe and switch off. Belt debris blocking the strainer is a common cause on these engines.
- Debris in the oil pump strainer. A strainer packed with black belt material is what we find on strip-down when a belt has been left too long. It restricts the oil supply.
- Belt material in the oil. Black flecks or small rubber pieces in drained oil, on the dipstick or in the oil filter.
- Metallic rattle from cold. A rattle in the first few seconds after a cold start can be an early sign.
- Rough idle or new engine noise. Changes in how the engine sounds or runs are worth checking.
If you notice any of these, drive as little as possible and contact us. Carrying on driving with low oil pressure can turn a belt job into an engine replacement. You can see real examples of worn belts and blocked strainers from our workshops on our wet belt replacement page.
When to change the belt
Ford originally talked about a long service life for the belt. Based on what we see in real cars, especially those used for short trips, we would rather change the belt between 60,000 and 80,000 miles, or at the first cold rattle, than wait for a warning light. If you have bought a used car and there is no record of the belt being done, it is worth getting it checked.
What our Ford 1.0 EcoBoost wet belt job involves
Our Ford 1.0 EcoBoost wet belt replacement is a complete job rather than just a belt swap. On the belt engine, it includes:
- a new timing belt and a new oil pump belt
- a new water pump and front case water seal (the water pump is included)
- a new crank front seal, friction washer and crank bolt
- the oil pump removed and checked
- the oil pump strainer removed and cleaned
- a new rocker cover gasket and oil filter
- fresh Ford-spec 5W20 engine oil
- a road test when the work is finished

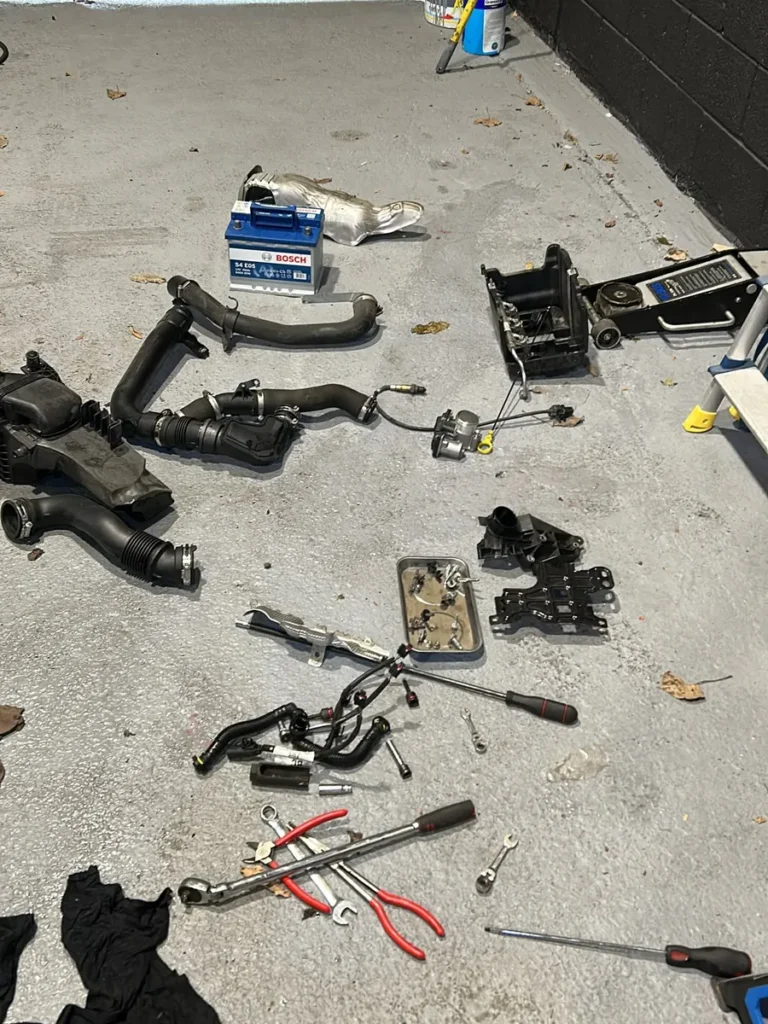

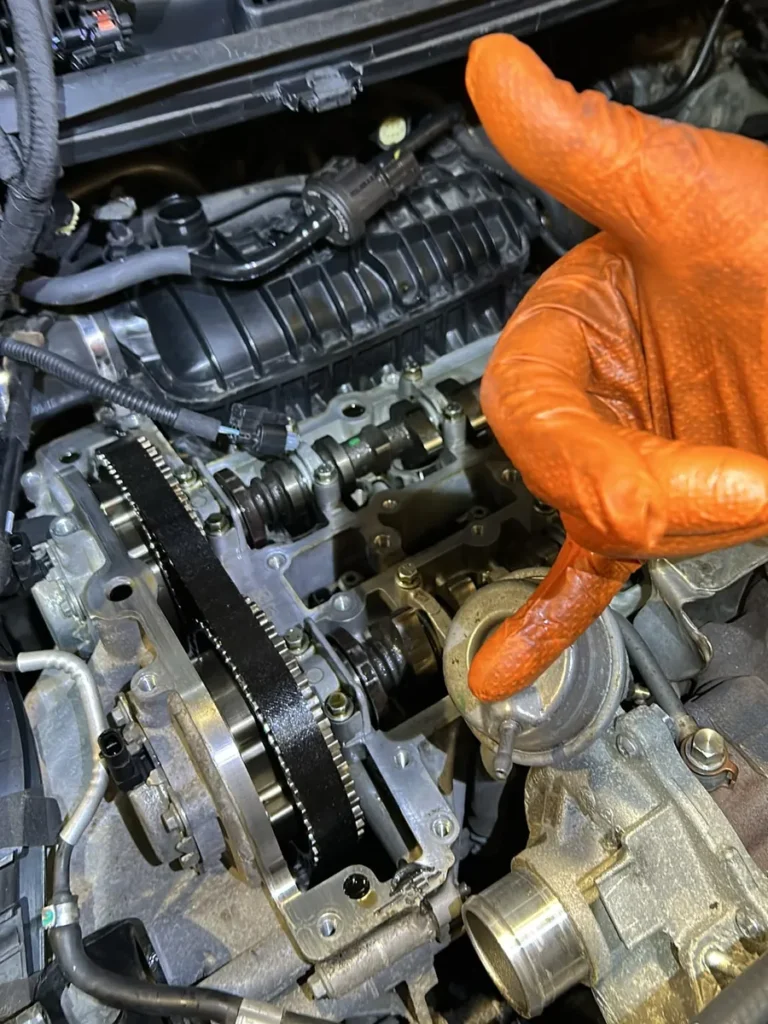

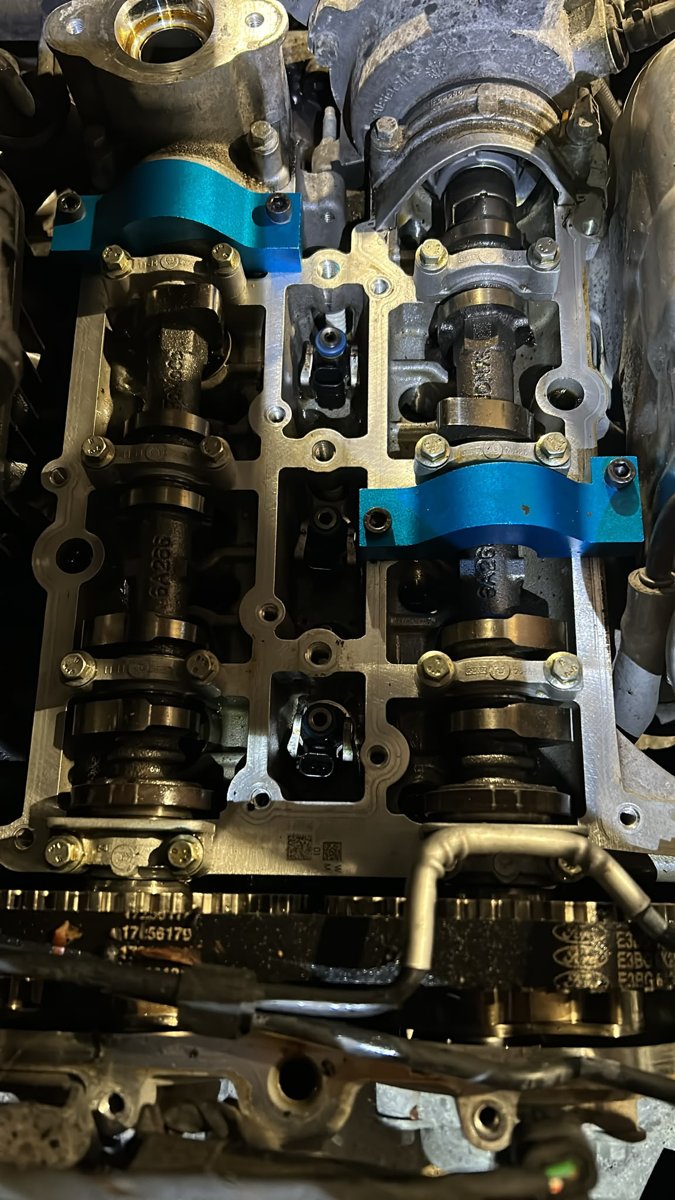

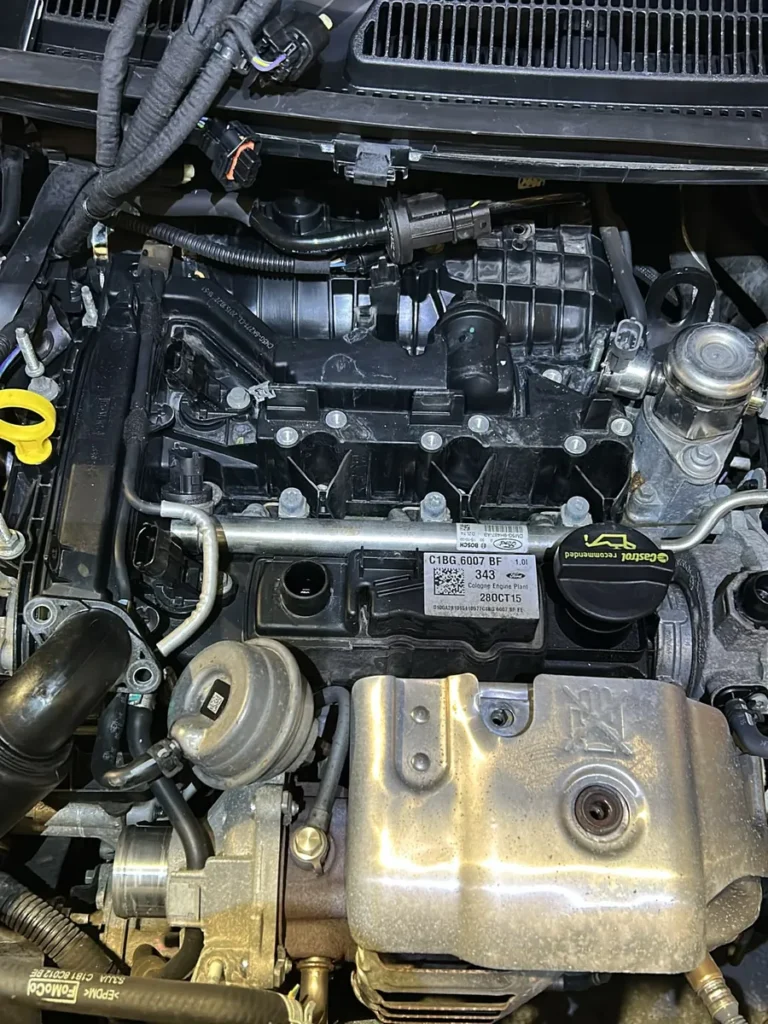

To get to the belt, the intake pipework, air box, heat shield and battery come out, then the intake manifold and cam cover. The photos here are from a Fiesta 1.0 EcoBoost wet belt replacement at our Swindon centre.
Plan on your car being with us for one working day. Drop it off before 9am and it is generally ready the same day. Collection is free within 5 miles of either centre. If you are further away, ask us about collection.
How much does a 1.0 EcoBoost wet belt replacement cost?
Our Ford 1.0 EcoBoost wet belt replacement is from £850, with the water pump included. The price is fixed and only goes up if we find something extra and you approve it first.
If your car has the later chain engine, the oil pump belt replacement is from £950. It costs a little more because the timing cover and sump both have to come off, which takes more time, and we check and clean the oil strainer while the sump is off. The price is fixed and only goes up if we find something extra and you approve it first.
Every wet belt replacement comes with our own 12-month / 12,000-mile parts and labour warranty, honoured at our Royston and Swindon workshops. We are Motor Ombudsman accredited and rated 4.98 from 233 reviews on BookMyGarage. You can compare prices for other engines on our wet belt replacement hub.
Where we do the work
We carry out 1.0 EcoBoost wet belt work at both of our centres, open Monday to Friday, 8:30am to 5:30pm:
- Royston: Unit 6, Block 2, Lower Gower Road, Royston SG8 5EA. Call 01763 788763.
- Swindon: Enviro Repair Swindon, Unit 2 DE Unicorn Business Centre, Ridgeway, Swindon SN4 0HT. Call 0330 043 1303. See our Ford EcoBoost wet belt replacement in Swindon page.
Recent job: a second Fiesta at our Swindon workshop

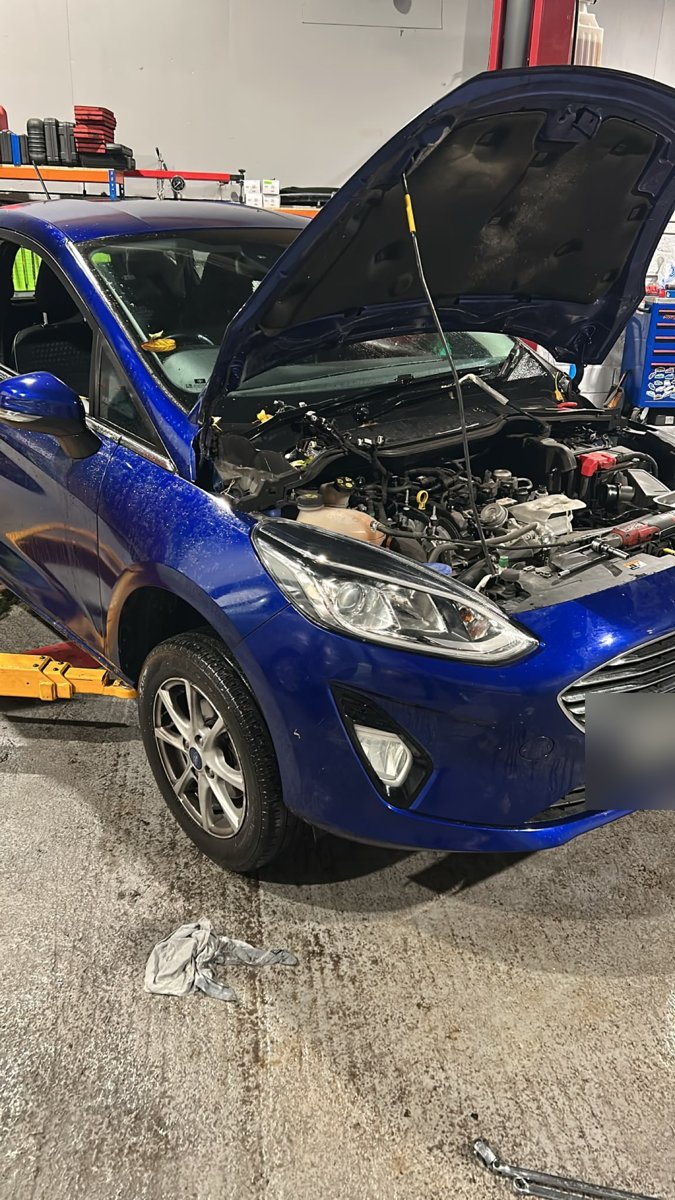

The silver Fiesta in the photos above was one of two Ford 1.0 EcoBoost wet belt replacements Spencer carried out at Enviro Repair Swindon. The second was this blue Fiesta. Both cars had a new water pump fitted, and on both the sump came off so the oil strainer could be cleaned. The water pump, sump removal and strainer clean are part of the job on every wet belt replacement we do, not optional extras. If your Fiesta is due, send us your reg for a fixed quote.
A few photos from the blue Fiesta’s job:
Frequently asked questions
Does my Ford 1.0 EcoBoost have a wet belt?
If it has the earlier engine, yes: the camshafts are driven by a wet timing belt. If it has the later chain engine, the camshafts are driven by a chain, but the oil pump usually still runs on a small wet belt. Either way, there is likely to be a belt in the oil. Send us your registration and we will confirm which engine your car has.
Can I tell from the year or registration plate?
Not reliably. The change to a chain came with a later revision of the engine and did not happen on one date across every model, so cars on the same plate can have different engines. The turbo-position check is a good quick guide, and we confirm the rest from your registration.
My car has the chain engine. Do I still need to worry?
You don’t need a cam belt change, but you should still have the oil pump belt checked. It runs in oil, ages like the old cam belt and can shed debris into the sump and strainer. Keeping up with oil changes using the correct oil helps, but it does not stop the belt from ageing.
What happens if the wet belt is left too long?
Pieces of the belt can break off and block the oil pump strainer. Oil pressure drops, the warning light may come on, and the engine can be starved of oil. A replacement engine costs far more than a planned belt change.
How long does the job take?
Plan on one working day. If you drop your car off before 9am, it is generally ready the same day. We will let you know if anything changes.
How much does a wet belt replacement cost on the belt engine?
Our Ford 1.0 EcoBoost wet belt replacement is from £850, with the water pump included. The price is fixed and only goes up if we find something extra and you approve it first. It comes with our 12-month / 12,000-mile parts and labour warranty.
How much does an oil pump belt replacement cost on a chain 1.0 EcoBoost?
From £950. The price is fixed and only goes up if we find something extra and you approve it first. The timing cover and sump both have to come off to reach the belt, and we check and clean the oil strainer while the sump is off.
Send us your reg for a fixed quote
Tell us your registration and we will confirm whether your 1.0 EcoBoost has the belt or the chain engine, and give you a fixed price before you book. Free collection within 5 miles of our Royston or Swindon centre.
